Características

Especificações

Model Number: YE3

Output Power: 0.37-355 KW

Type: Induction Motor

Frequency: 50/60Hz

Phase: Three-phase

Protect Feature: Totally Enclosed

AC Voltage: 380V/660V 660V/1140V

Efficiency: Ie 3

Certificação: CCC, ce, ISO

Product Name: YE3 low voltage super efficiency 3ph induction AC electrical motor

Poles: 2-10

Protection Class :: IP54/IP55

Insulation Class: F

Material: cast iron

Altitude :: â‰¤ 1000m

Duty: S1

Ambient temperature: -15 ~ +40â„ƒ

Cooling type: IC411

Mounting type: B3 ; B35 ; B5 ; VI

Informação básica

Certificação: CCC, ce, ISO

Model Number: YE3

Condições de Pagamento e Envio

Packaging Details: YE3 low voltage super efficiency 3ph induction AC electrical motor Plywood box

Supply Ability: 500 Set/Sets per Month as actual production plan

Descrição de produto

Product Description

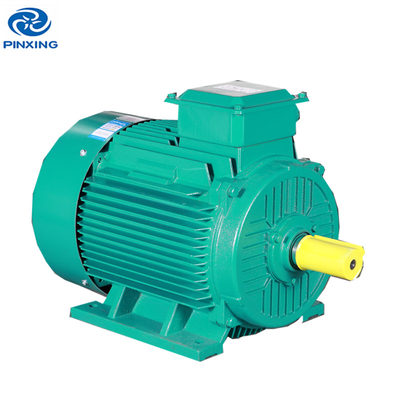

YE3 low voltage super efficiency 3ph induction AC electrical motor

Frame	80-355mm	Voltage	380V/660V 660V/1140V
Frequency	50HZ (60HZ customized available)	Rated Power	0.37-355kw
Poles	2-10	Protection class	IP54/IP55
Insulation class	F	Temperature rise	B
Altitude	not exceed 1000m	Ambient temperature	-15~40℃
Work duty	S1 (continuous)	Mounting	B3 ; B35 ; B5 ; VI
Cooling	IC411	Color	Blue RAL5021 (customization availabke)
Enclosure	drip proof	Package	Plywood box
Efficicency Index	IE3

Application

Certifications

YE3 Low Voltage Super Efficiency 3ph Induction Totally Enclosed Ac Electric Motor
